Ford F-150 Headlights Price
These spare parts are after-market tuning components and are not original equipment. They are alternative parts permitted under Article 110(1) of Regulation (EC) No 6/2002 to restore or modify the appearance of the vehicle. Any manufacturers' trade marks and original reference numbers are shown solely for technical identification of vehicle fitment. All trade marks remain the property of their respective owners. The parts must be used strictly as intended and in accordance with all applicable regulations.
Installation Video
Installation guide for VLAND Ford F-150 (2021-2023)
Step-by-step video guide showing professional installation techniques and tips for your Ford F-150 (2021-2023) VLAND lighting upgrade.
Product Information

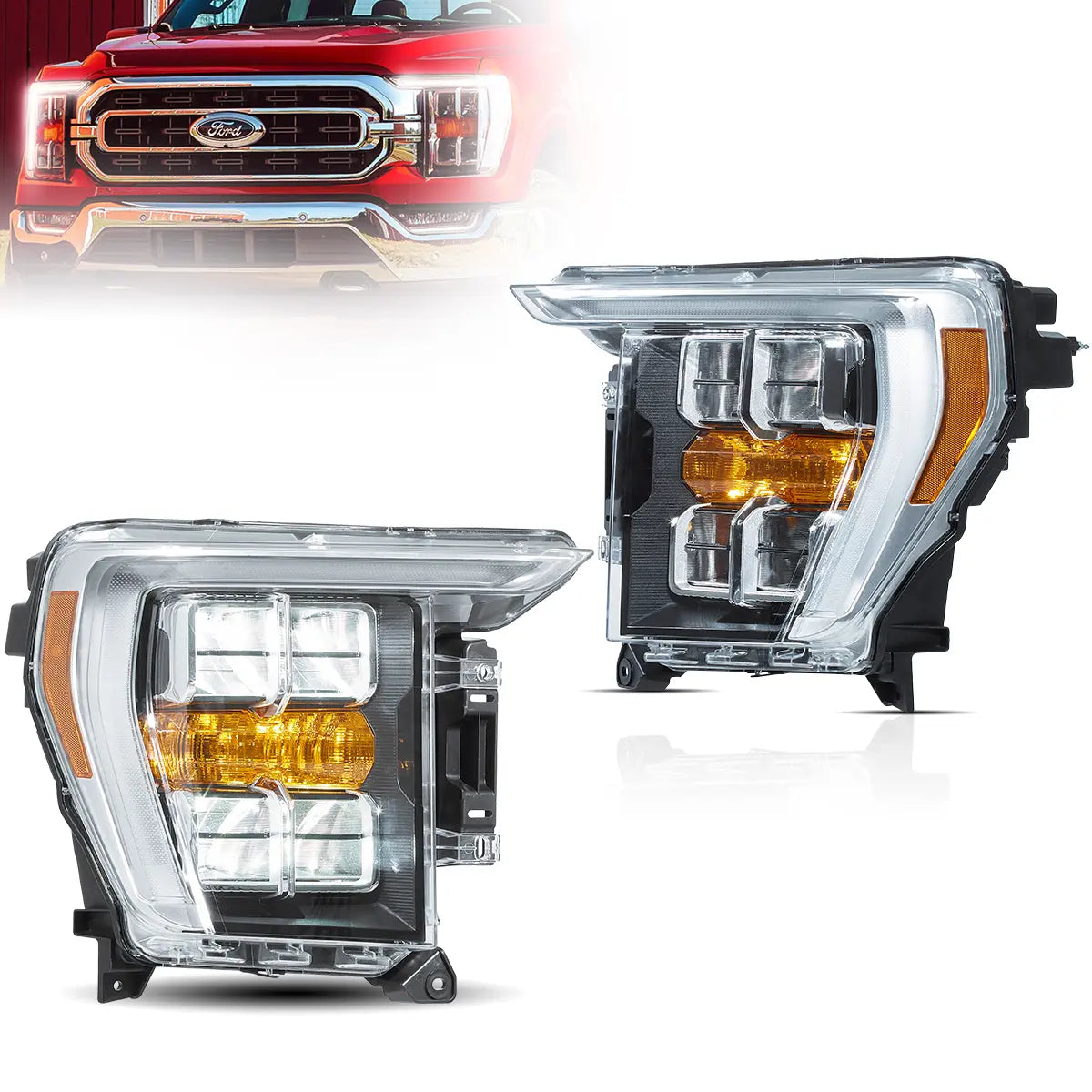

VLAND LED Headlights (Classic Look) — Ford F-150 • 14th Gen (2021–2024)

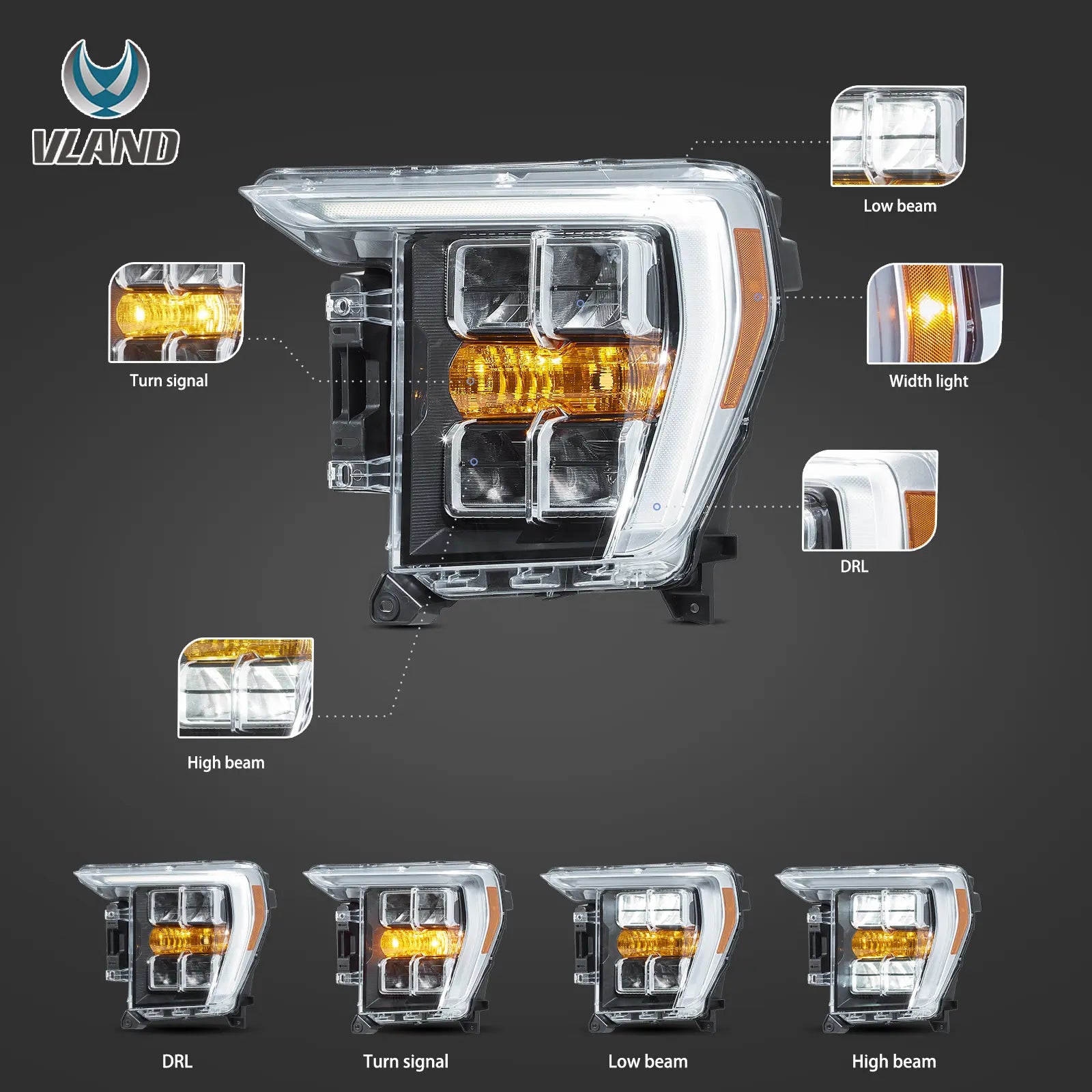

Chrome/amber OEM-style appearance with LED reflector low/high beams, white DRL, and OE amber turn signals. Direct plug-and-play for halogen-equipped 2021–2024 F-150 (excludes Lightning & Raptor).
Why you’ll love these

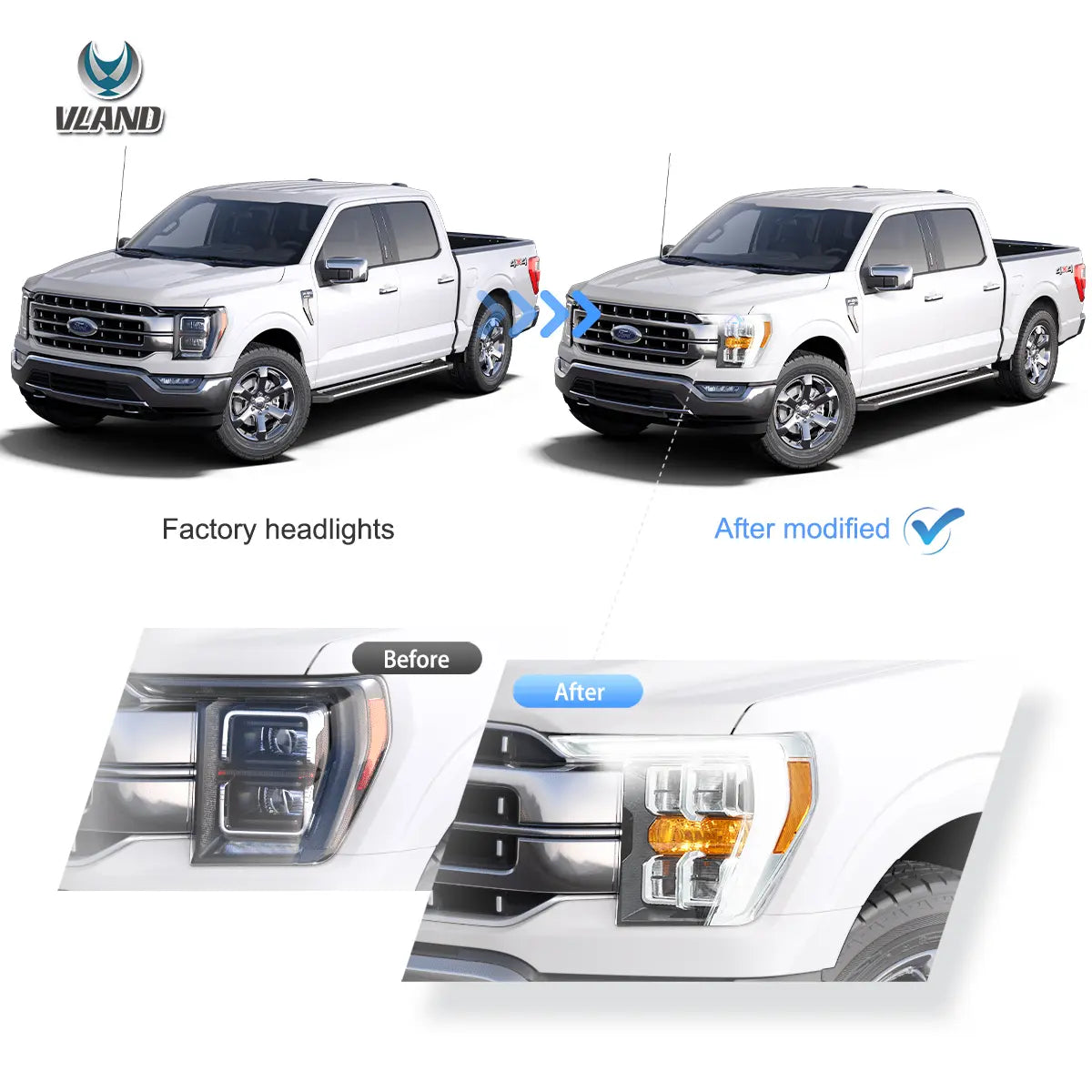

- Classic look, modern light — chrome housing and amber reflector keep the factory vibe with a clear, bright LED output.
- LED reflector dual-beam for both low and high, delivering a focused beam pattern and crisp cut-off.
- True plug-and-play — OE connectors, no coding or drilling; includes a DRL fuse tap for halogen trucks.

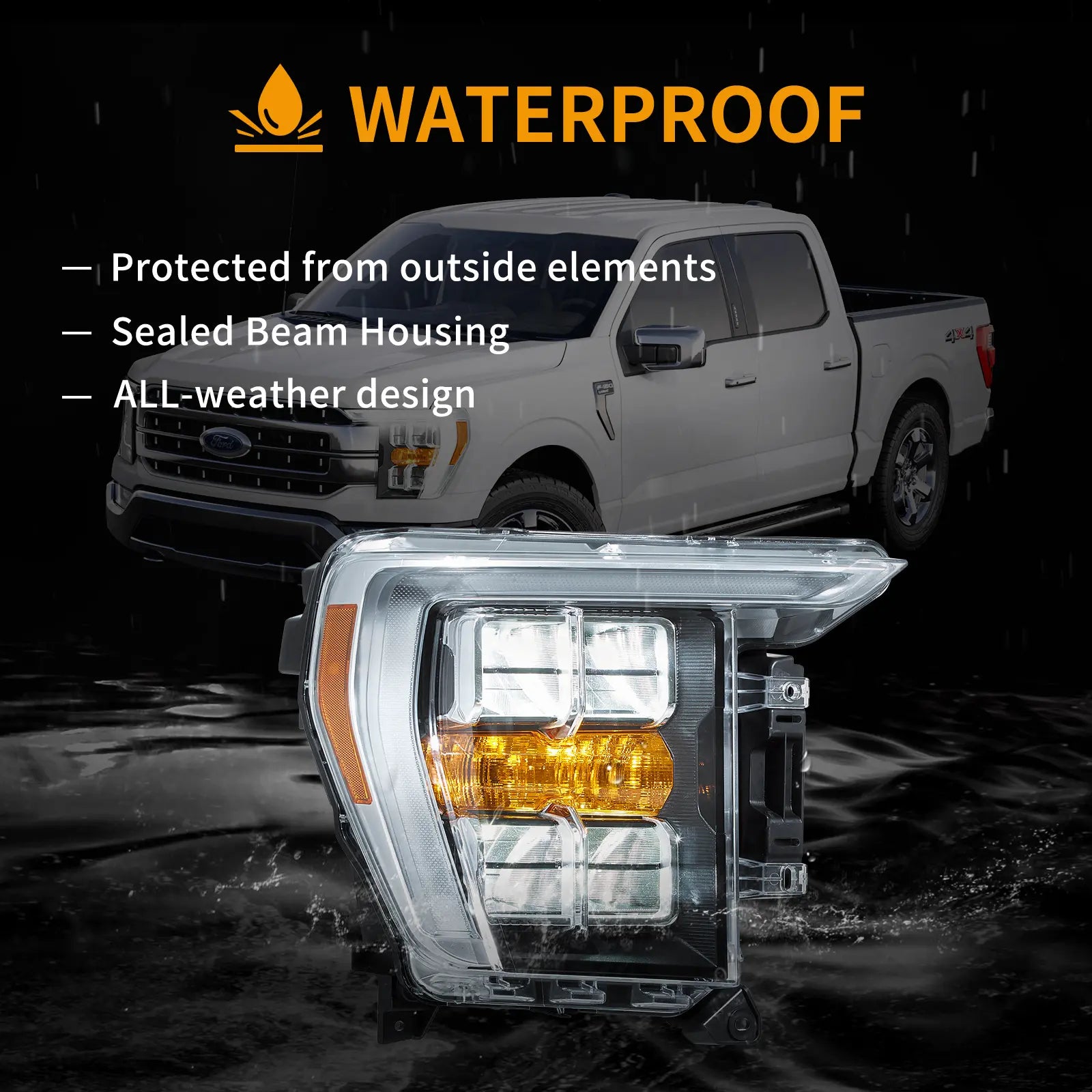

- Built to last — PP/ABS housing, clear PC lens, IP67 sealing for dust/water resistance.
- Road-legal — DOT/SAE and FMVSS 108 compliant; produced under IATF 16949 & ISO 9001.
Exact fitment
- Ford F-150 (14th Gen) — model years 2021–2024, all cabs/trims with factory halogen headlights.
Not compatible: F-150 Lightning, F-150 Raptor, or trucks originally equipped with full-LED headlights.
LHD / RHD: both available — select your region at checkout.

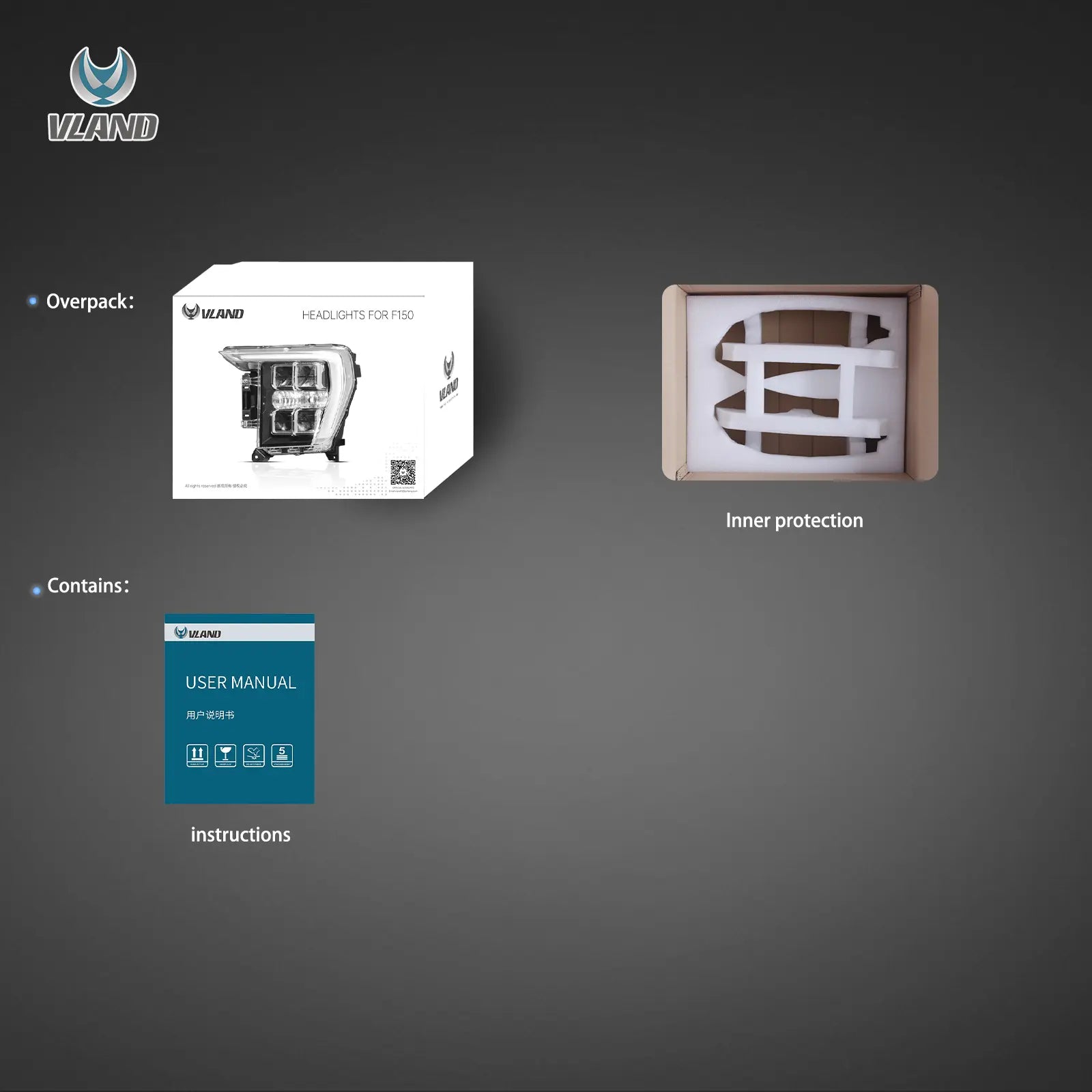

What’s in the box
- 1 × Left (driver) LED headlight
- 1 × Right (passenger) LED headlight
- Plug-and-play harness + DRL fuse tap (for halogen trucks)
- User / quick-install guide
Install (plug-and-play)

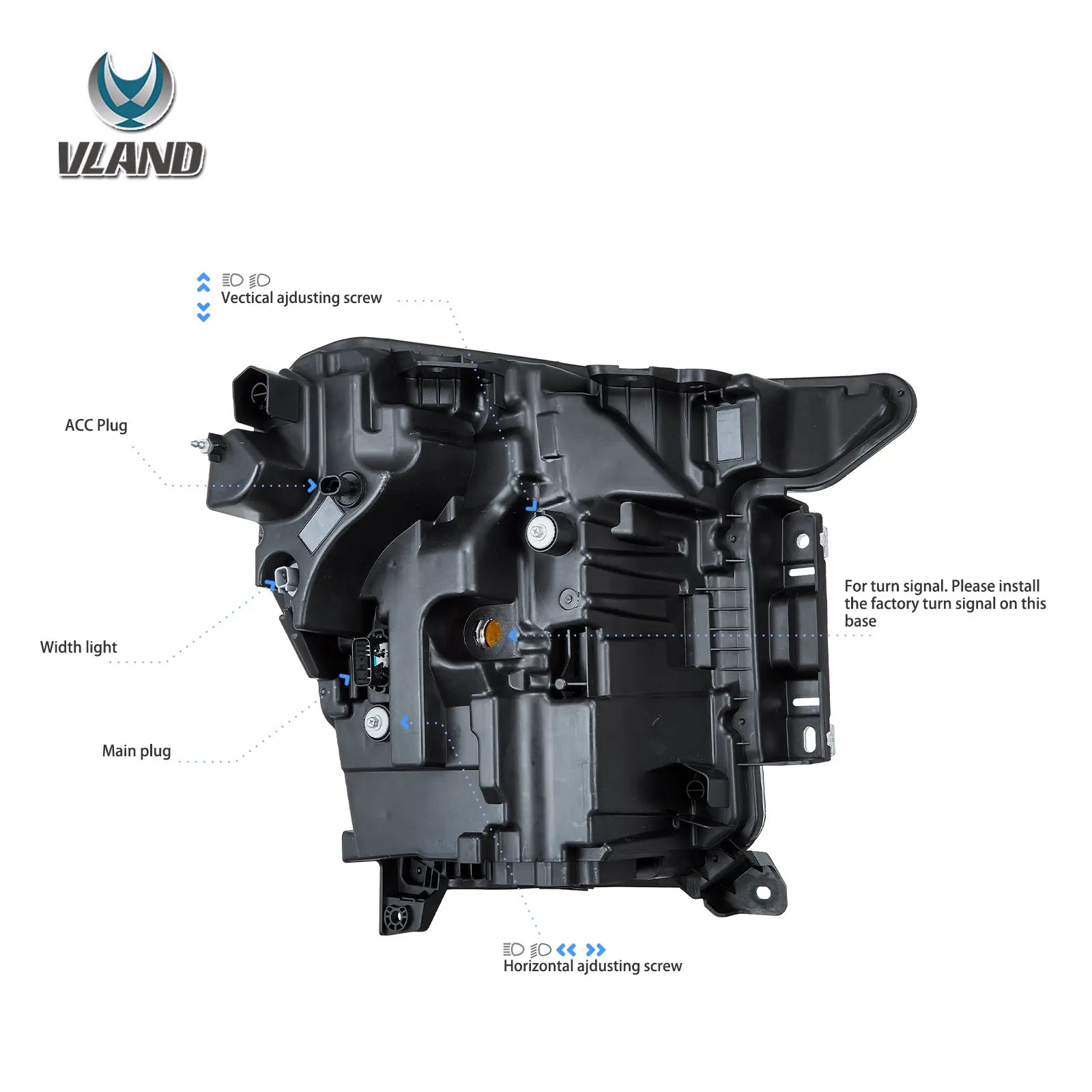

- Remove the OE headlamps and retain factory clips/fasteners.
- Connect OE multi-pin plugs to each new assembly and mount to factory points.
- For halogen trucks, route the included DRL fuse tap to the designated slot in the fuse panel.
- Re-use your OE amber turn-signal bulb in the new housing.
- Power on to verify low/high, DRL, and turn operation; aim using the built-in adjusters.
Professional installation recommended.
Tech specs
| Vehicle | Ford F-150 (14th Gen) 2021–2024 — halogen-equipped trucks |
|---|---|
| Lamp type | LED reflector dual-beam (low/high) |
| DRL | LED (white) |
| Turn signal | Re-uses factory bulb (amber) |

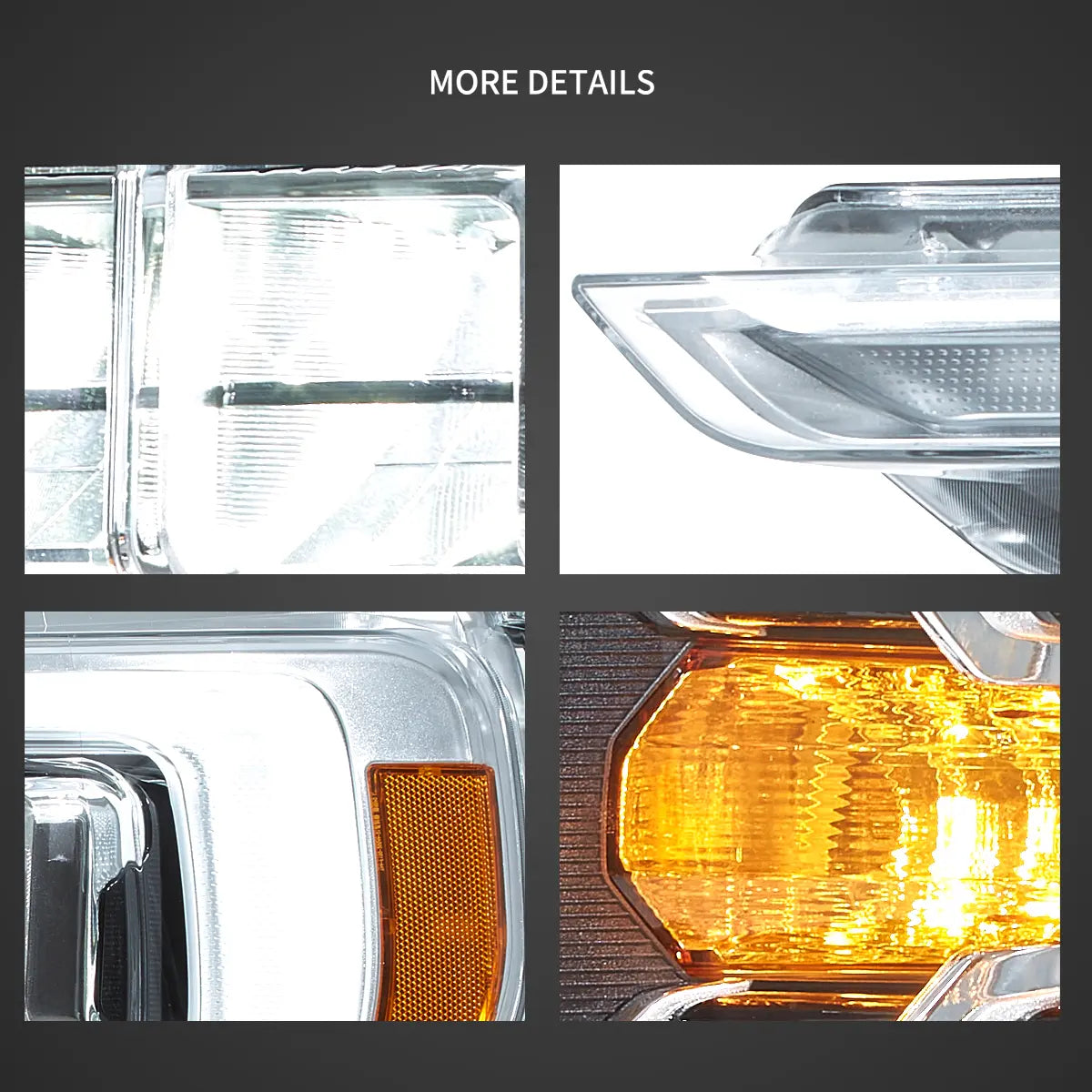

| Housing / lens | Chrome PP/ABS housing; clear polycarbonate (PC) lens; IP67 sealed |
| Reflector | Amber |
| Color temperature | ~6500–7000 K |
| LHD / RHD | Both available |
| Weight / box | Net ≈ 10 kg; Gross ≈ 12.61 kg / ~65 × 54 × 50 cm |
| Compliance | DOT/SAE, FMVSS 108 compliant |
| Warranty | 1 year from purchase date |
OEM & parts cross-references
OEM (examples): ML3Z-13008-K (LH, halogen), ML3Z-13008-J (RH, halogen).
ABPA Partslink: FO2502409 (LH, halogen), FO2503409 (RH, halogen); FO2502418 (LH, LED dual projector), FO2503418 (RH, LED dual projector).
FAQs
Will these fit trucks with factory LED headlights? No — these are designed for trucks that left the factory with halogen headlights.
Do they fit the Lightning or Raptor? No — they are not compatible with F-150 Lightning or F-150 Raptor.
Do I need new turn-signal bulbs? No — you re-use the OE amber bulb.
Any coding required? No. Connect the OE plugs and the included DRL fuse tap (halogen trucks).
Are they road-legal? Yes — they meet DOT/SAE and FMVSS 108 requirements.
